A Comprehensive Guide to FortiGate 80F: Next-Gen Security for Your Network
Category :

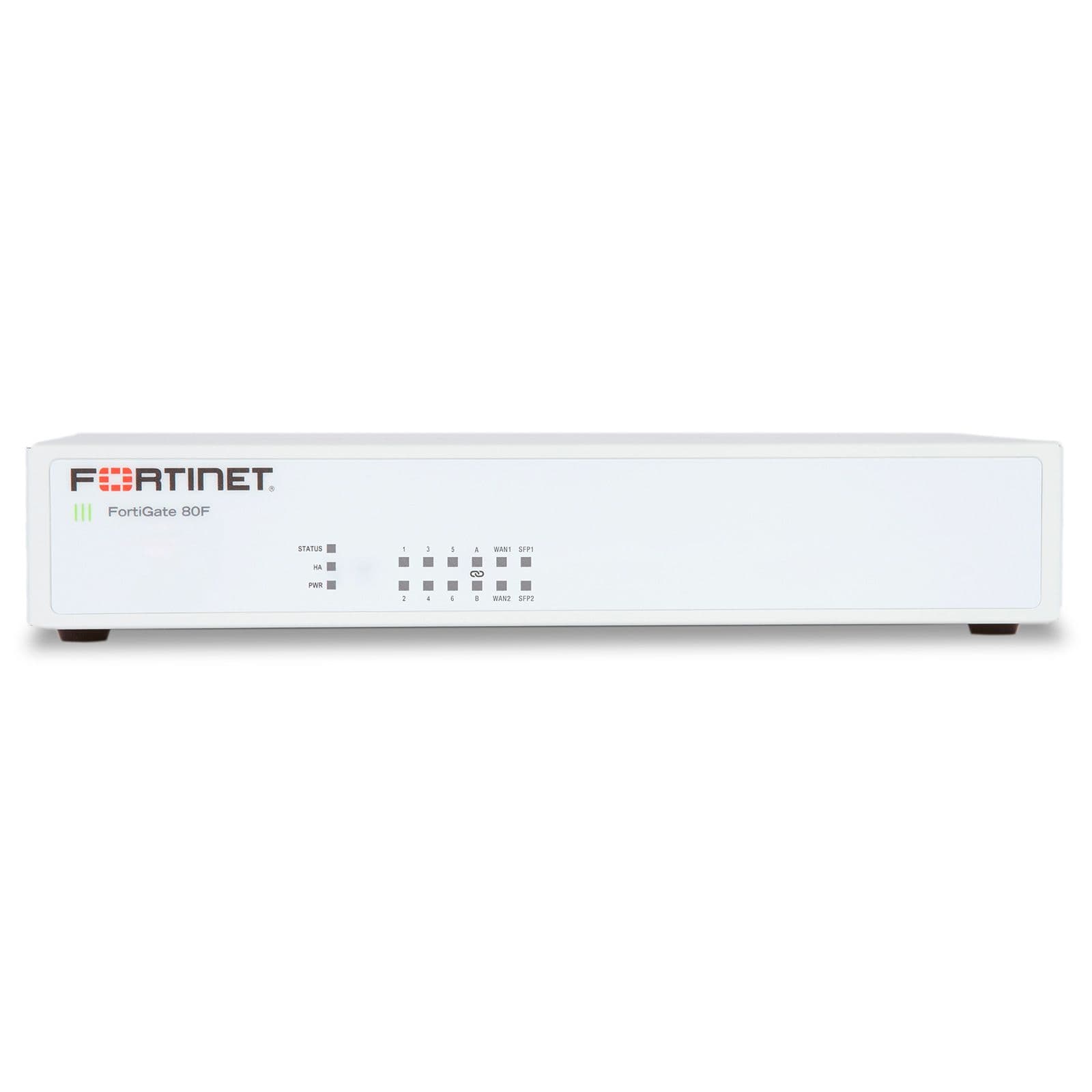

Fortinet FortiGate 80F Compact, Powerful Network Security for Small to Mid-Sized Businesses
The Fortinet FortiGate 80F is a compact, powerful, and manageable network security appliance ideal for small to mid-sized businesses. Part of the FortiGate F-series firewalls, it offers a variety of features that enhance network security. Recommended for environments with around 200 users, it can handle more connections, though performance may drop if the user count exceeds this. It integrates SD-WAN for a cost-effective solution to connect remote branches to the cloud, reducing the need for expensive MPLS lines.
With a SOC4 SD-WAN ASIC processor, it combines SD-WAN and firewall security, optimizing performance. The firewall supports high throughput rates: 10 Gbps for firewall, 1.4 Gbps for IPS, 900 Mbps for threat protection, 1 Gbps for NGFW, and 950 Mbps for SSL VPN, maintaining ultra-low latency even with all security services enabled. It can manage up to 32 FortiAPs, with 16 in tunnel mode, and features a compact design for desktop, wall mount, or rack-mounted deployment.
It offers flexible connectivity with eight Gigabit Ethernet ports, USB 3.0, console port, bypass ports, and two DC power plugs for redundancy. Integrated with the Fortinet Security Fabric, it allows unified security management across the network. Powered by FortiOS, it provides centralized control of the entire security fabric. FortiGuard services offer advanced threat protection, and users can subscribe to bundles like 360 Protection, which includes support and advanced security features. The FortiGate 80F is perfect for businesses requiring strong network security with advanced features such as SD-WAN and integrated threat protection.
Fortinet FortiGate 80F Next Generation Firewall (NGFW)
The Fortinet FortiGate 80F Network Security/Firewall Appliance features Next Generation Firewall (NGFW) capabilities that reduce complexity and maximize return on investment by integrating threat protection security functions into a single high-performance appliance, powered by Fortinet’s Security Processing Unit (SPU). It provides full visibility into users, devices, and applications across the entire attack surface, ensuring consistent security policy enforcement regardless of asset location.
The appliance protects against network exploitable vulnerabilities through industry-validated Intrusion Prevention System (IPS) technology that delivers low latency and optimized performance. It automatically blocks threats in decrypted traffic using the industry's highest SSL inspection performance, including support for the latest TLS 1.3 standard with mandated ciphers. Additionally, it proactively blocks newly discovered sophisticated attacks in real-time through AI-powered FortiGuard Labs and advanced threat protection services integrated into the Fortinet Security Fabric.
Fortinet FortiGate 80F Secure SD-WAN
The Fortinet FortiGate 80F Network Security/Firewall Appliance includes Secure SD-WAN capabilities that ensure consistent business application performance through accurate detection and dynamic WAN path steering over the best-performing WAN transport. It accelerates multi-cloud access for faster SaaS adoption with cloud-on-ramp and supports self-healing networks with WAN edge high availability, subsecond traffic switchover, and real-time bandwidth-based traffic steering. Automated overlay tunnels provide encryption and abstract the physical hybrid WAN for simplified management. The SD-WAN Orchestrator offers a simplified and intuitive workflow for centralized management and zero touch deployment. Enhanced real-time and historical analytics provide visibility into network performance and help identify anomalies, while a strong security posture is maintained through a next-generation firewall and real-time threat protection.
Fortinet FortiGate 80F Security Fabric
The Security Fabric is a cybersecurity platform that enables digital innovations by providing broad visibility across the entire attack surface to better manage risk. It offers a unified and integrated solution that reduces the complexity of supporting multiple-point products. Through automated workflows, the Security Fabric increases operational speeds and reduces response times across the Fortinet deployment ecosystem. The platform covers the following key areas under a single management center:
- Security-Driven Networking that secures, accelerates, and unifies the network and user experience.
- Zero Trust Network Access that identifies and secures users and devices in real-time, both on and off the network.
- Dynamic Cloud Security that protects and controls cloud infrastructures and applications.
- AI-Driven Security Operations that automatically prevents, detects, isolates, and responds to cyber threats.
Fortinet FortiGate 80F FortiOS Network Security
FortiOS is the core operating system of FortiGate devices, forming the foundation of the Fortinet Security Fabric. It consolidates all security and networking capabilities across the entire FortiGate platform into one intuitive operating system, significantly reducing complexity, costs, and response times. The platform is managed through a single OS and a pane-of-glass interface that covers the entire digital attack surface. Key features of FortiOS include:
- A Truly Consolidated Platform: FortiOS offers a single OS and pane-of-glass management for the entire digital attack surface, consolidating various security functionalities.
- Industry-Leading Protection: FortiOS is validated by leading organizations such as NSS Labs, VB100, AV Comparatives, and ICSA for its security and performance.
- Leverages the Latest Technologies: It incorporates advanced technologies, including deception-based security, to enhance defense mechanisms.
- Application Control and Web Traffic Filtering: FortiOS controls thousands of applications, blocks the latest exploits, and filters web traffic using millions of real-time URL ratings, supporting true TLS 1.3 inspection.
- AI-Driven Security: The platform automatically prevents, detects, and mitigates advanced attacks within minutes using integrated AI-driven security and advanced threat protection.
- Innovative SD-WAN Capabilities: It improves and unifies the user experience with SD-WAN capabilities, enabling threat detection, containment, and automated segmentation to isolate threats.
- SPU Hardware Acceleration: FortiOS leverages Security Processing Unit (SPU) hardware acceleration to boost network security performance, ensuring high throughput and low latency.
Powered by Purpose-built Secure SD-WAN ASIC SOC4
The FortiGate 80F is powered by the purpose-built Secure SD-WAN ASIC SOC4, which combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) and network processors to deliver unmatched performance. Key features of this technology include:
- Unmatched Performance: The SOC4 integrates a RISC-based CPU with Fortinet’s SPU content and network processors, providing high performance and efficiency for network security operations.
- Fast Application Identification and Steering: The SOC4 enables the industry's fastest application identification and steering, ensuring efficient business operations by directing traffic to the most optimal path.
- Accelerated IPsec VPN Performance: It accelerates IPsec VPN performance, ensuring the best user experience for direct internet access by optimizing encrypted traffic.
- Best-of-Breed NGFW Security and Deep SSL Inspection: The SOC4 supports top-tier next-generation firewall (NGFW) security features and deep SSL inspection with high performance, ensuring strong protection for both encrypted and unencrypted traffic.
- SD-Branch Transformation: The purpose-built ASIC extends security to the access layer, enabling SD-Branch transformation with accelerated and integrated switch and access point connectivity. This allows for a more streamlined and secure branch network architecture.
Fortinet FortiGate 80F – Firewall Throughput (10 Gbps)
The FortiGate 80F is a network security and firewall appliance designed to provide robust protection for small to medium-sized networks. Below is a detailed description of the features, focusing specifically on firewall throughput:
The FortiGate 80F offers a firewall throughput of 10 Gbps. This measurement indicates the maximum amount of data the firewall can handle, ensuring high-speed protection without compromising network performance. The 10 Gbps throughput is ideal for organizations with moderate to high network traffic, as it allows the firewall to manage and inspect large amounts of data quickly and efficiently. This ensures that your network remains secure while maintaining optimal performance and minimizing latency during data transfers.
Fortinet FortiGate 80F – IPS Throughput (1.4 Gbps)
The IPS (Intrusion Prevention System) throughput of the FortiGate 80F is 1.4 Gbps. This refers to the maximum rate at which the appliance can process and inspect traffic for malicious activity, such as viruses, worms, and other types of network attacks. With 1.4 Gbps IPS throughput, the FortiGate 80F is capable of scanning large volumes of data at high speeds without affecting the network's overall performance.
IPS throughput is an essential feature for detecting and blocking security threats in real-time. It enables the firewall to protect the network from known and unknown vulnerabilities and exploits by inspecting incoming and outgoing traffic for suspicious patterns. The 1.4 Gbps throughput ensures that businesses can maintain high levels of security while keeping their network operations running smoothly and without delays.
Fortinet FortiGate 80F – NGFW Throughput 1 Gbps
The NGFW (Next-Generation Firewall) throughput of the FortiGate 80F is 1 Gbps. This throughput refers to the maximum amount of data that the firewall can handle while providing next-generation firewall capabilities, such as application control, deep packet inspection, and advanced threat protection.
NGFWs go beyond traditional firewalls by inspecting traffic for both known and unknown threats, making it possible to detect and block advanced attacks, such as malware, botnets, and zero-day exploits. The 1 Gbps throughput ensures that the firewall can maintain high performance while applying these advanced security features to network traffic.
Fortinet FortiGate 80F – Threat Protection: 900 Mbps
The threat protection throughput of the FortiGate 80F is 900 Mbps. This metric indicates the maximum rate at which the appliance can process and protect network traffic from various threats, such as malware, ransomware, and other cyberattacks, while ensuring that network performance remains intact.
With 900 Mbps of threat protection throughput, the FortiGate 80F is capable of handling significant amounts of traffic while providing real-time defense against known and unknown threats. This includes the ability to inspect traffic deeply, block malicious activity, and detect anomalies without impacting the network's overall speed or efficiency.
Fortinet FortiGate 80F Bypass WAN/LAN Mode
The FortiGate-80F-Bypass model includes a pair of bypass ports that are designed to maintain network communication even in the event of device faults. This feature helps organizations prevent network interruptions, thereby improving overall network reliability.
Fortinet FortiGate 80F 3G/4G WAN Connectivity
The FortiGate 80F Series includes a 3.0 USB port that enables the connection of a compatible third-party 3G/4G USB modem. This feature provides additional WAN connectivity or serves as a redundant link, ensuring maximum reliability for network operations.
Fortinet FortiGate 80F Compact and Reliable Form Factor
The FortiGate 80F is designed for small environments and offers flexible installation options, allowing it to be placed on a desktop or wall-mounted. It is small and lightweight, yet highly reliable, featuring a superior MTBF (Mean Time Between Failure) to minimize the chance of network disruption.
Fortinet FortiGate 80F Security
Identifies Thousands of Applications Inside Network Traffic for Deep Inspection and Granular Policy Enforcement
The FortiGate 80F is capable of identifying thousands of applications within network traffic. This allows for deep packet inspection and enables the enforcement of detailed and specific policies based on the identified applications. This helps ensure that network usage complies with organizational requirements and security standards.
Protects Against Malware, Exploits, and Malicious Websites in Both Encrypted and Non-Encrypted Traffic
The device provides protection from malware, exploits, and access to malicious websites. It can inspect both encrypted (SSL/TLS) and non-encrypted traffic, ensuring security across all types of network communications.
Prevents and Detects Against Known Attacks Using Continuous Threat Intelligence from AI-Powered FortiGuard Labs Security Services
FortiGate 80F uses threat intelligence services provided by FortiGuard Labs, which are powered by AI. This enables continuous detection and prevention of known cyberattacks by leveraging up-to-date global threat intelligence.
Proactively Blocks Unknown Sophisticated Attacks in Real-Time with the Fortinet Security Fabric Integrated AI-Powered FortiSandbox
The appliance includes integration with Fortinet Security Fabric and uses FortiSandbox, an AI-powered solution. This allows it to proactively detect and block unknown, complex attacks in real-time by analyzing suspicious behavior and files in a secure environment.
Fortinet Fortigate 80f interface
- 2x GE RJ45/SFP Shared Media Ports: These ports support both Gigabit Ethernet (GE) over RJ45 connectors and SFP (Small Form-factor Pluggable) modules, providing flexibility in network connectivity for different types of media.
- 1x Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration): This pair of Gigabit Ethernet RJ45 ports allows for bypass functionality, ensuring that network communication continues even in the event of device failures, improving network reliability. The default configuration links WAN1 and Port1 for seamless failover.
- 8x GE RJ45 Ports: The device includes eight Gigabit Ethernet RJ45 ports, enabling high-speed wired connections for various network devices and supporting efficient data transfer within the local network.
